MS-2125

Widely referenced MS-series platform with archived owner manual and known relationship to several special and limited Phoenix Gold products.

Specifications

Output Power (4 ohm @ 12.5/14.4V): 125/160 WRMS x2
Output Power (2 ohm @ 14.4V): 255 WRMS x2
Output Power (4 ohm bridged @ 14.4V): 510 WRMS x1
Frequency Response: +/-1dB from 20Hz to 20kHz
Signal to Noise Ratio: >100dB
Input Sensitivity: 200mV to 2V
Input Impedance: >30k ohms
Input Voltage Range: 10.5V to 15.0V
Typical Idle Current: 3A
Power Supply Efficiency: >80%
Damping Factor: >300 @ 60Hz (manual reference)
Maximum Battery Voltage: 15.5V DC
Minimum Impedance: 2 ohm bridged / 1 ohm stereo
Dimensions: 17.0"L x 11.4"W x 2.4"H

Visual Identification Notes

Manual gallery provides baseline visual references for faceplate and control area.
Record serial and board revision markings during model intake.
Capture terminal and internal photos for future cross-model comparisons.

Known Issues

Aging capacitors and connector wear after long service life.
Thermal stress can affect solder reliability in output/power sections.

Recommended Service Actions

Establish pre-service baseline measurements and thermal behavior.
Validate PSU components and output stage integrity before calibration.
Document replacement BOM and post-service verification data.

Parts List

Main power reservoir capacitor (4700uF / 50V class)
Original: 4700uF 50V radial electrolytic (legacy OEM variant)
Replacement: 105C low-ESR radial capacitor, matched lead spacing
Verification: Community Verified
Dual op-amp for preamp / crossover stage
Original: Legacy dual DIP-8 op-amp (marking varies by production run)
Replacement: Low-noise audio op-amp DIP-8
Verification: Proposed

DigiKey Recommendations

4700uF 50V low-ESR radial capacitor
DigiKey: P12345-ND
Placeholder DigiKey reference. Confirm ripple current, lead spacing, and can diameter against board footprint before finalizing.
Open DigiKey reference
Audio-grade dual op-amp replacement
DigiKey: P23456-ND
Placeholder DigiKey reference. Verify stability and compensation in original circuit before bulk install.
Open DigiKey reference

Related Repair Guides

Signal-path noise diagnosis (generic workflow)
Template process for hum, hiss, and channel imbalance root-cause analysis before replacing semiconductors.

Related Forum Threads

Catalog scans and ad archive (contributor thread)
Crowdsourced scan quality standards and indexing conventions for source documentation.

Gallery

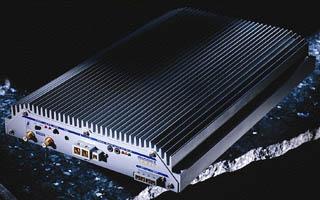

MS-2125 amplifier photo
Archived MS2125 product photo from Phoenix Gold FAQ MS/MPS page.

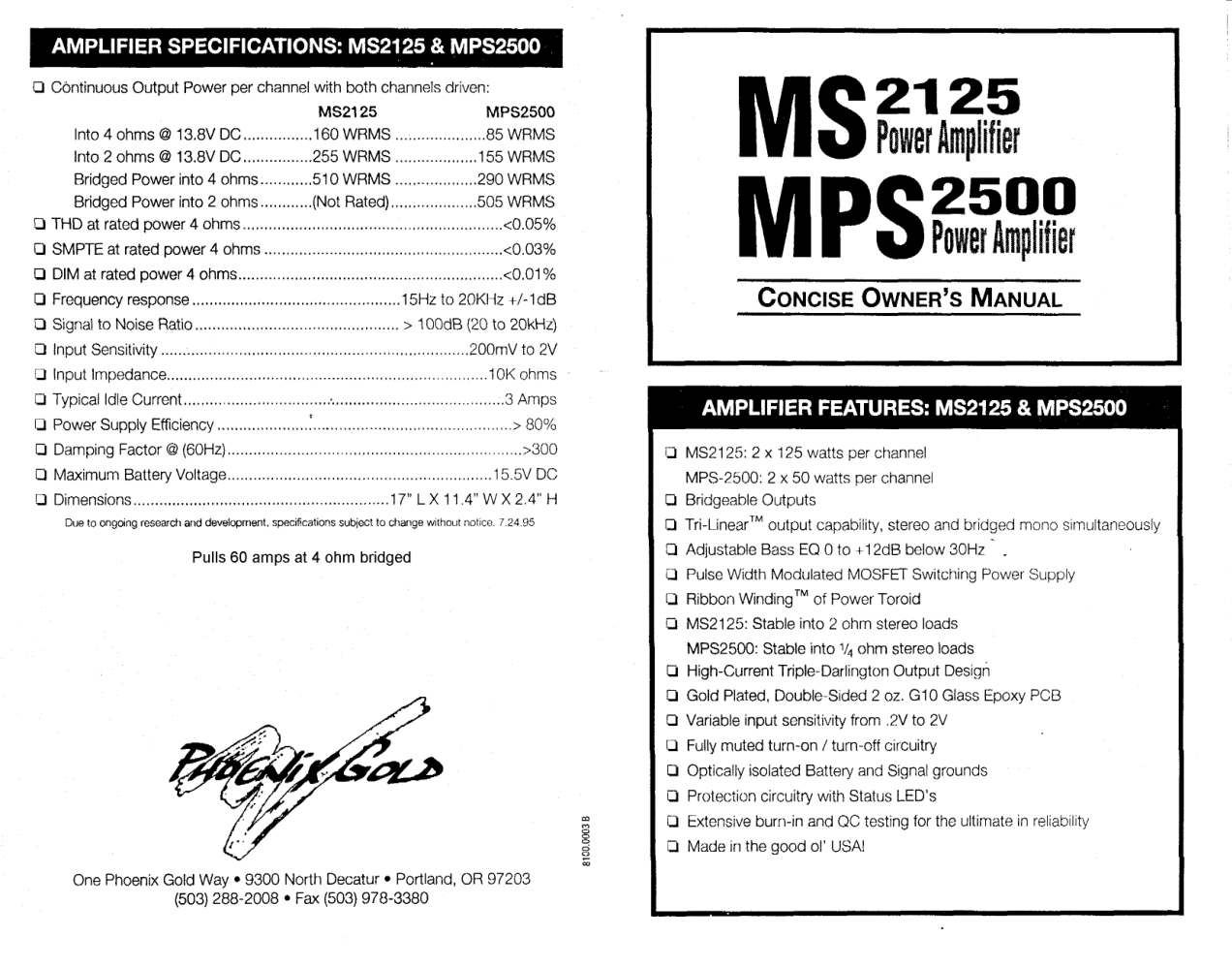

MS-2125 manual cover
Owner-manual cover extracted from archived PDF for visual identification and layout reference.

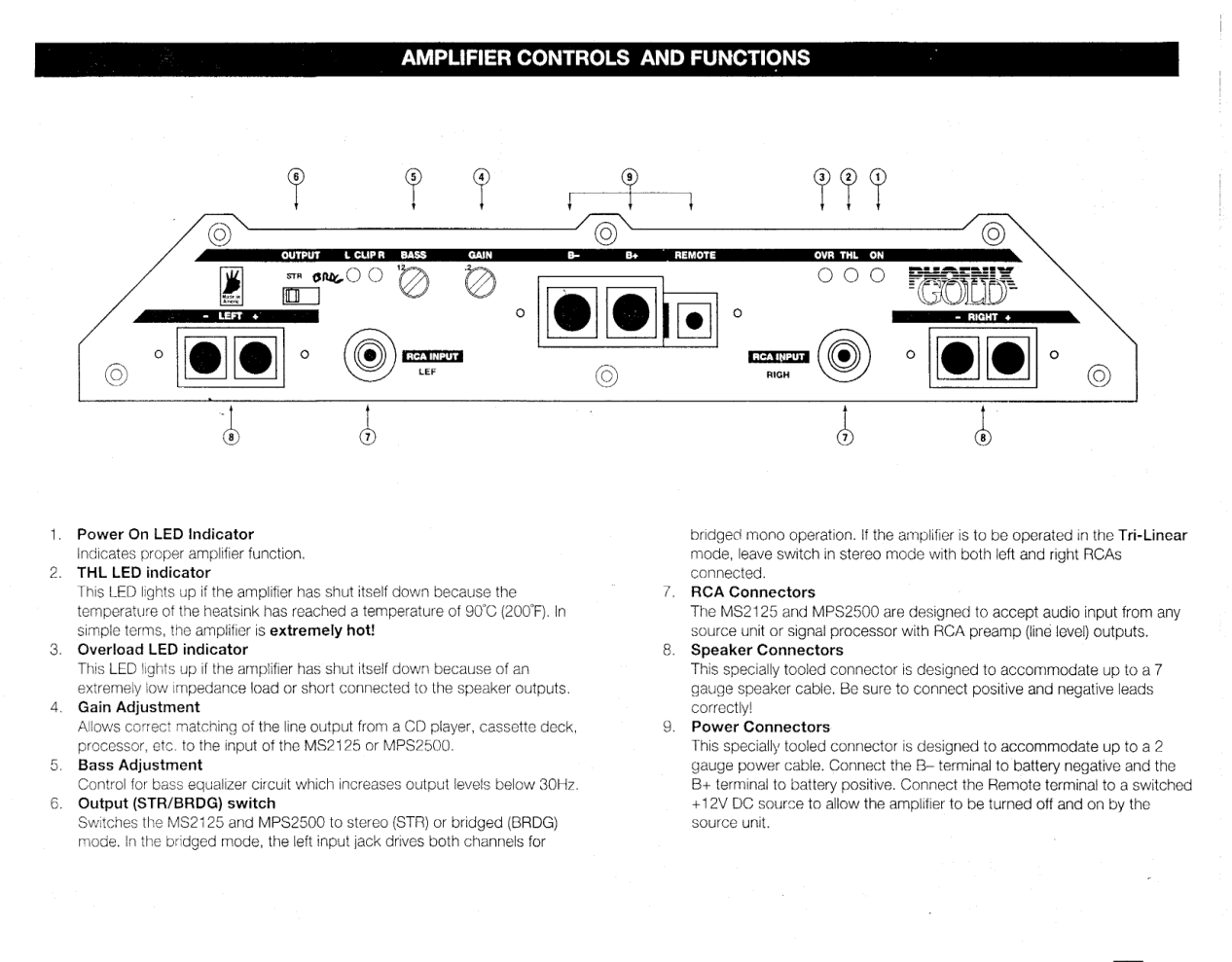

MS-2125 manual page 2
Manual interior page used as technical and historical reference material.

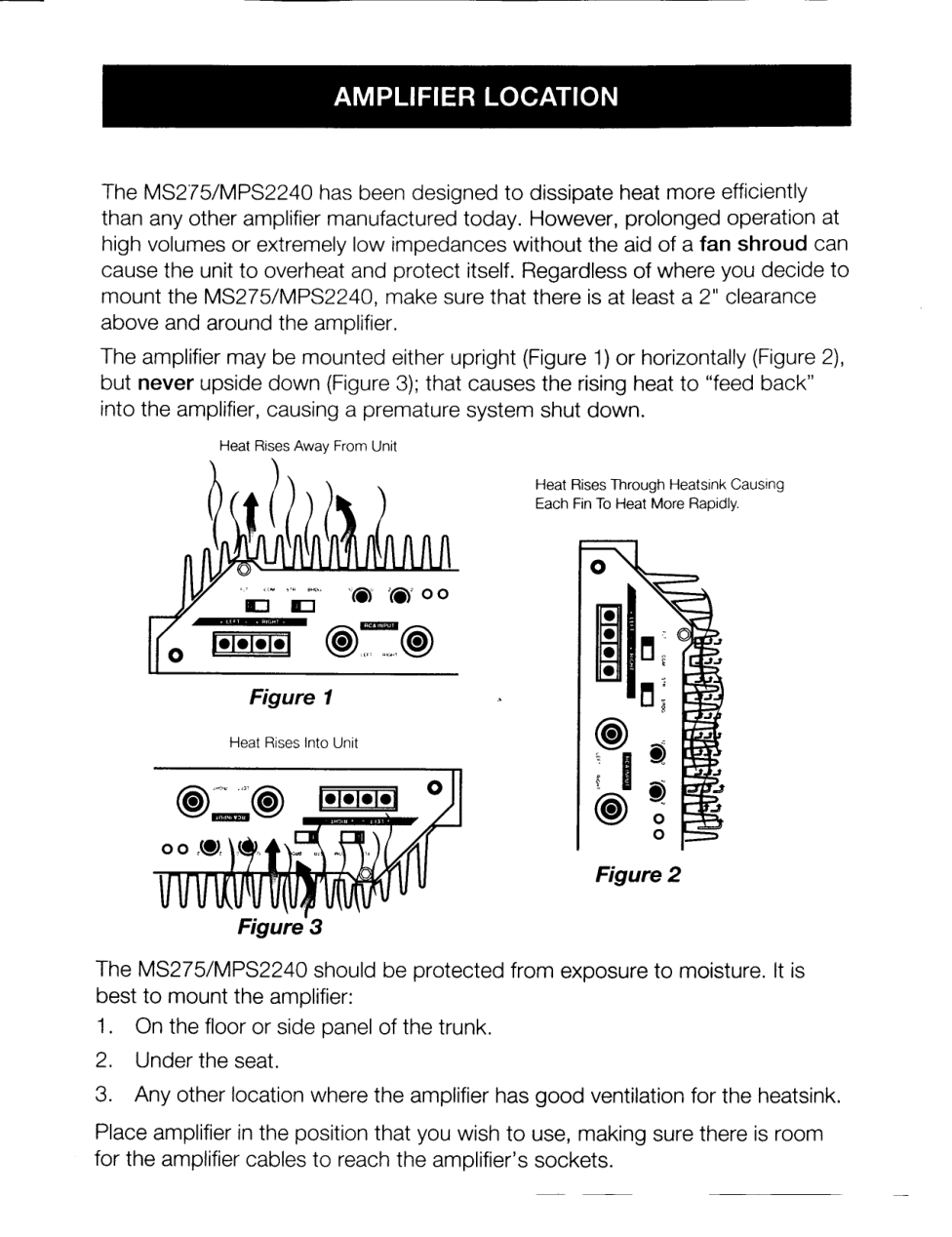

MS-2125 manual page 3
Additional manual page for control labels, tables, and period styling details.

Historical Notes

MS-Series Manual Archive Baseline
The Phoenix Phorum manual archive includes original MS-series documentation for MS250, MS275, MS2125, and MS2250, while the archived Phoenix FAQ indicates a 1992-1995 MS/MPS production window.
